ESPRESSO Data Tutorial
This tutorial demonstrates how to create and use RVData standard files for the Echelle SPectrograph for Rocky Exoplanets and Stable Spectroscopic Observations (ESPRESSO) instrument at all data levels:
Level 2 (L2): Extracted, wavelength-calibrated echelle spectra
Level 3 (L3): Stitched 1D spectrum on a common wavelength grid
Level 4 (L4): Radial velocity measurements
Prerequisites
Install the rvdata package:
pip install rv-data-standard
Setup and Data Download
First, we’ll import the necessary modules and download sample ESPRESSO data files.
[4]:
import os
import requests
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from astropy.io import fits
# RVData imports
from rvdata.core.models.level2 import RV2
from rvdata.core.models.level3 import RV3
from rvdata.core.models.level4 import RV4
def download_file(url, filename):
"""Download a file if it doesn't already exist."""
if not os.path.exists(filename):
print(f"Downloading {filename}...")
response = requests.get(url)
response.raise_for_status()
with open(filename, "wb") as f:
f.write(response.content)
print(f"Downloaded {filename}")
else:
print(f"{filename} already exists, skipping download.")
# ESPRESSO sample data URLs (hosted on project server)
file_urls = {
"raw": "http://grinnell.as.arizona.edu/~rvdata/espresso/ESPRE.2017-12-03T02-09-40.348.fits",
"S2D_BLAZE_A": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_S2D_BLAZE_A.fits",
"S2D_BLAZE_B": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_S2D_BLAZE_B.fits",
"BLAZE_A": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T10-43-59.835_BLAZE_A.fits",
"BLAZE_B": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T10-43-59.835_BLAZE_B.fits",
"S1D_A": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_S1D_A.fits",
"S1D_B": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_S1D_B.fits",
"S1D_TELL_CORR_A": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_S1D_TELL_CORR_A.fits",
"DRIFT_MATRIX_B": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_DRIFT_MATRIX_B.fits",
"CCF_A": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_CCF_A.fits",
"CCF_TELL_CORR_A": "http://grinnell.as.arizona.edu/~rvdata/espresso/r.ESPRE.2017-12-03T02-09-40.348_CCF_TELL_CORR_A.fits"
}
# Download the files
raw_file = "ESPRE.2017-12-03T02:09:40.348.fits"
s2d_blaze_A = "r.ESPRE.2017-12-03T02:09:40.348_S2D_BLAZE_A.fits"
s2d_blaze_B = "r.ESPRE.2017-12-03T02:09:40.348_S2D_BLAZE_B.fits"
blaze_A = "r.ESPRE.2017-12-03T10:43:59.835_BLAZE_A.fits"
blaze_B = "r.ESPRE.2017-12-03T10:43:59.835_BLAZE_B.fits"
s1d_A = "r.ESPRE.2017-12-03T02:09:40.348_S1D_A.fits"
s1d_B = "r.ESPRE.2017-12-03T02:09:40.348_S1D_B.fits"
s1d_tel_corr_A = "r.ESPRE.2017-12-03T02:09:40.348_S1D_TELL_CORR_A.fits"
drift_matrix = "r.ESPRE.2017-12-03T02:09:40.348_DRIFT_MATRIX_B.fits"
CCF_A = "r.ESPRE.2017-12-03T02:09:40.348_CCF_A.fits"
CCF_TELL_CORRA = "r.ESPRE.2017-12-03T02:09:40.348_CCF_TELL_CORR_A.fits"
download_file(file_urls["raw"], raw_file)
download_file(file_urls["S2D_BLAZE_A"], s2d_blaze_A)
download_file(file_urls["S2D_BLAZE_B"], s2d_blaze_B)
download_file(file_urls["BLAZE_A"], blaze_A)
download_file(file_urls["BLAZE_B"], blaze_B)
download_file(file_urls["S1D_A"], s1d_A)
download_file(file_urls["S1D_B"], s1d_B)
download_file(file_urls["S1D_TELL_CORR_A"], s1d_tel_corr_A)
download_file(file_urls["DRIFT_MATRIX_B"], drift_matrix)
download_file(file_urls["CCF_A"], CCF_A)
download_file(file_urls["CCF_TELL_CORR_A"], CCF_TELL_CORRA)
ESPRE.2017-12-03T02:09:40.348.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_S2D_BLAZE_A.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_S2D_BLAZE_B.fits already exists, skipping download.
r.ESPRE.2017-12-03T10:43:59.835_BLAZE_A.fits already exists, skipping download.
r.ESPRE.2017-12-03T10:43:59.835_BLAZE_B.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_S1D_A.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_S1D_B.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_S1D_TELL_CORR_A.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_DRIFT_MATRIX_B.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_CCF_A.fits already exists, skipping download.
r.ESPRE.2017-12-03T02:09:40.348_CCF_TELL_CORR_A.fits already exists, skipping download.
Level 2: Extracted Echelle Spectra
Level 2 data contains wavelength-calibrated, extracted echelle spectra organized by trace (fiber). Each trace contains flux, wavelength, variance, and blaze function arrays.
Creating L2 from Native ESPRESSO Files
To create an RVData-standard L2 file from native ESPRESSO data, you need:
raw file: Raw data with headers
S2D files: Extracted spectra for both fibers from the ESPRESSO pipeline
Blaze files Blaze spectra for both fibers
DRIFT file The measured drift
[5]:
# Create RVData-standard L2 from native ESPRESSO files
espr_l2 = RV2.from_fits(raw_file, instrument='ESPRESSO')
# Save to FITS file
l2_standard_file = "ESPR_L2_standard.fits"
espr_l2.to_fits(out_filedir=None, out_filename=l2_standard_file)
print(f"Created {l2_standard_file}")
SCIENCE FP HD 10700
File is valid for conversion!
No PS1 data found, PUPILIMAGE extension will not be generated
No TELLURIC file found, TRACEi_TELLURIC_x extensions will not be generated.
No SKYSUB file found, TRACEi_SKYSUB_x extensions will not be generated.
Created ESPR_L2_standard.fits
/Users/emilio/Desktop/EPRV/Translators/RVData/rvdata/core/models/base.py:474: UserWarning: Filename 'ESPR_L2_standard.fits' does not follow the EPRV naming convention. Suggested filename: 'espresso_SL2_20171203T020940.fits'
warnings.warn(
Using L2 Data
Reading the L2 File
You can read L2 files using either astropy’s fits.open() or the RVData RV2.from_fits() method.
[6]:
# Open using astropy
l2 = fits.open(l2_standard_file)
# Examine the primary header - same keywords regardless of instrument!
hdr = l2[0].header
print(f"Telescope: {hdr['TELESCOP']}")
print(f"Instrument: {hdr['INSTRUME']}")
print(f"Object: {hdr['OBJECT']}")
print(f"Number of traces: {hdr['NUMTRACE']}")
print("\nTrace contents:")
for i in range(1, hdr['NUMTRACE'] + 1):
print(f" TRACE{i}: {hdr[f'TRACE{i}']}")
Telescope: ESO-VLT-U1
Instrument: ESPRESSO
Object: HD 10700
Number of traces: 4
Trace contents:
TRACE1: SCI
TRACE2: SCI
TRACE3: CAL
TRACE4: CAL
Examining L2 Extensions
The EXT_DESCRIPT extension lists all FITS extensions in the file.
[7]:
# List all extensions
ext_descript = pd.DataFrame(l2['EXT_DESCRIPT'].data)
print(ext_descript[['Name', 'Description']].to_string())
Name Description
0 PRIMARY The primary header containing the keywords following the standard format
1 INSTRUMENT_HEADER The original instrument header
2 RECEIPT The list of operations performed on this file
3 DRP_CONFIG Pipeline details to go from the raw file to this file
4 EXT_DESCRIPT Contains the description of all the extensions in the file
5 ORDER_TABLE Table capturing the wavelength extent of each order
6 TRACE1_FLUX The flux measured in trace 1
7 TRACE1_WAVE The wavelength associated to the flux in trace 1
8 TRACE1_VAR The variance for trace 1
9 TRACE1_BLAZE The blaze for trace 1
10 BARYCORR_KMS The barycentric correction in km/s
11 BARYCORR_Z The barycentric correction in redshift
12 BJD_TDB Photon weighted midpoint
13 EXPMETER The exposure meter
14 GUIDINGIMAGE Images from the guiding camera
15 TRACE2_FLUX The flux measured in trace 2
16 TRACE2_VAR The variance for trace 2
17 TRACE2_WAVE The wavelength associated to the flux in trace 2
18 TRACE1_QUALITY The data quality array for trace 1
19 TRACE2_QUALITY The data quality array for trace 2
20 TRACE2_BLAZE The blaze for trace 2
21 TRACE3_FLUX The flux measured in trace 3
22 TRACE4_FLUX The flux measured in trace 4
23 TRACE3_VAR The variance for trace 3
24 TRACE4_VAR The variance for trace 4
25 TRACE3_WAVE The wavelength associated to the flux in trace3
26 TRACE4_WAVE The wavelength associated to the flux in trace 4
27 TRACE3_QUALITY The data quality array for trace 3
28 TRACE4_QUALITY The data quality array for trace 4
29 TRACE3_BLAZE The blaze for trace 3
30 TRACE4_BLAZE The blaze for trace 4
31 TRACE3_DRIFT The drift for trace 3
32 TRACE4_DRIFT The drift for trace 4
Examining the Order Table
The ORDER_TABLE extension describes the wavelength coverage of each echelle order.
[8]:
order_table = pd.DataFrame(l2['ORDER_TABLE'].data)
print(f"Number of orders: {len(order_table)}")
print(f"\nWavelength coverage: {order_table['WAVE_START'].min():.1f} - {order_table['WAVE_END'].max():.1f} Angstroms")
print("\nFirst 5 orders:")
print(order_table.head())
Number of orders: 85
Wavelength coverage: 377.1 - 790.6 Angstroms
First 5 orders:
ETC/Int_Order HR/UHR_Orders MR_Order Central_wav[nm] FSR_range[nm] \
0 161 1,2 1 380.04 2.36
1 160 3,4 2 382.42 2.39
2 159 5,6 3 384.83 2.42
3 158 7,8 4 387.26 2.45
4 157 9,10 5 389.73 2.48
FSRmin[nm] FSRmax[nm] start_wav[nm] endwav[nm] TS_range[nm] \
0 378.87 381.23 377.15 383.07 5.93
1 381.23 383.62 379.50 385.47 5.96
2 383.62 386.04 381.89 387.89 6.00
3 386.04 388.49 384.31 390.34 6.03
4 388.49 390.97 386.76 392.83 6.07
ECHELLE_ORDER ORDER_INDEX WAVE_START WAVE_END
0 161 0 377.15 383.07
1 160 1 379.50 385.47
2 159 2 381.89 387.89
3 158 3 384.31 390.34
4 157 4 386.76 392.83

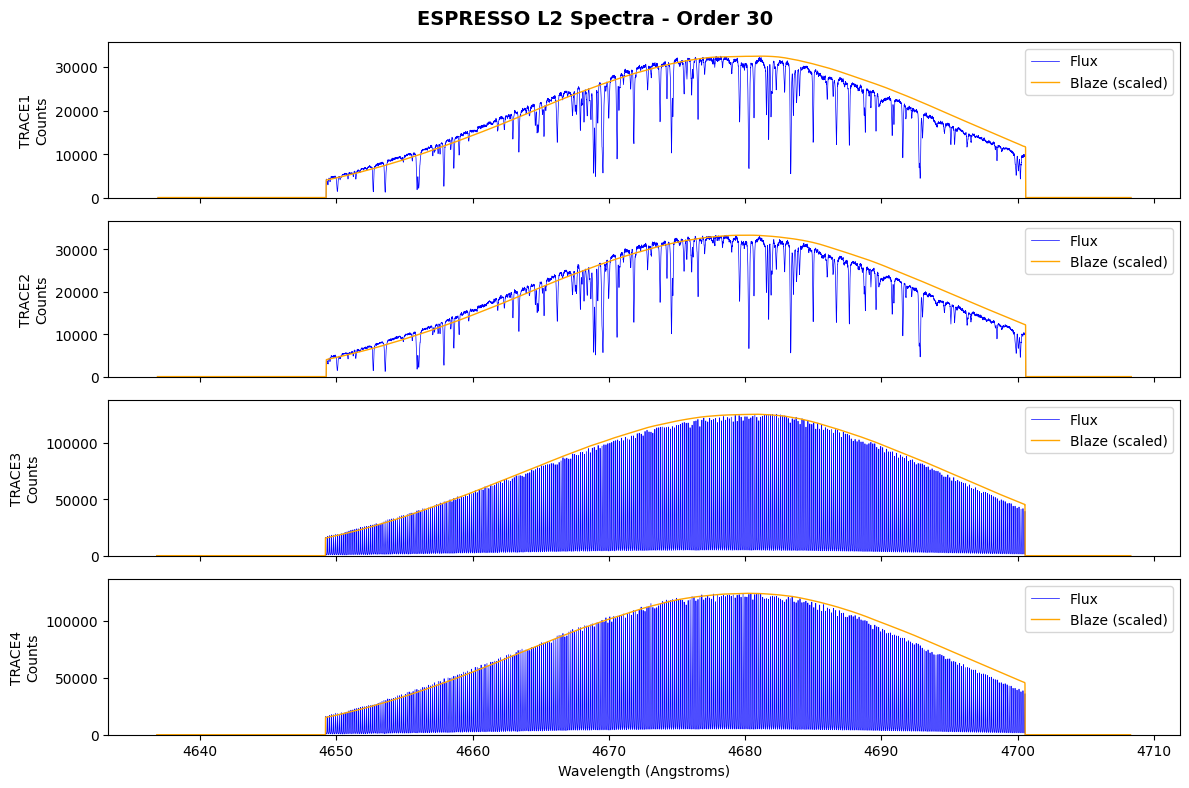

Plotting L2 Spectra
ESPRESSO has 4 traces:
TRACE 1 and 2: Science fibers, slices 1 & 2
TRACE 3 and 4: Calibration fiber, slices 1 & 2
Let’s plot one order from all traces.
[9]:
# Plot a single order from the three science traces
order = 30 # Choose an order to plot
fig, axes = plt.subplots(4, 1, figsize=(12, 8), sharex=True)
for i, (ax, trace_num) in enumerate(zip(axes, [1,2, 3, 4])):
wave = l2[f'TRACE{trace_num}_WAVE'].data[order]
flux = l2[f'TRACE{trace_num}_FLUX'].data[order]
blaze = l2[f'TRACE{trace_num}_BLAZE'].data[order]
# Scale blaze for visualization
blaze_scaled = blaze * (np.nanmax(flux) / np.nanmax(blaze))
ax.plot(wave, flux, 'b-', lw=0.5, label='Flux')
ax.plot(wave, blaze_scaled, 'orange', lw=1, label='Blaze (scaled)')
ax.set_ylabel(f'TRACE{trace_num}\nCounts')
ax.legend(loc='upper right')
ax.set_ylim(0, np.nanmax(flux) * 1.1)
axes[-1].set_xlabel('Wavelength (Angstroms)')
fig.suptitle(f'ESPRESSO L2 Spectra - Order {order}', fontsize=14, fontweight='bold')
plt.tight_layout()
plt.show()
Level 3: Stitched 1D Spectrum
Level 3 data contains a stitched 1D spectrum on a common wavelength grid with constant velocity spacing. The stitching process:
Divides out the blaze function
Resamples each order onto a common wavelength grid
ESPRESSO level 3 files are obtained from S1D files produced by the ESPRESSO DRS.
[10]:
# Create L3 from the standard L2 file
espr_l3 = RV3.from_fits(raw_file, instrument="ESPRESSO")
# Save to FITS file
l3_standard_file = "ESPR_L3_standard.fits"
espr_l3.to_fits(out_filedir=None, out_filename=l3_standard_file)
print(f"Created {l3_standard_file}")
SCIENCE FP HD 10700
File r.ESPRE.2017-12-03T02:09:40.348_S1D_SKYSUB_A.fits does not exist.
Created ESPR_L3_standard.fits
/Users/emilio/Desktop/EPRV/Translators/RVData/rvdata/core/models/base.py:474: UserWarning: Filename 'ESPR_L3_standard.fits' does not follow the EPRV naming convention. Suggested filename: 'espresso_SL3_20171203T020940.fits'
warnings.warn(
Using L3 Data
Reading the L3 File
[11]:
# Open the L3 file
l3 = fits.open(l3_standard_file)
# List extensions
print("L3 Extensions:")
for hdu in l3:
print(f" {hdu.name}")
L3 Extensions:
PRIMARY
INSTRUMENT_HEADER
RECEIPT
DRP_CONFIG
EXT_DESCRIPT
ORDER_TABLE
STITCHED_CORR_SCI_FLUX
STITCHED_CORR_SCI_WAVE
STITCHED_CORR_SCI_VAR
STITCHED_TELLCORR_SCI_WAVE
STITCHED_TELLCORR_SCI_FLUX
STITCHED_TELLCORR_SCI_VAR
Understanding L3 Extensions
For ESPRESSO with a single science fiber, the stitched spectrum is stored in STITCHED_CORR_SCI_* extensions:
STITCHED_CORR_SCI_WAVE/FLUX/VAR
[12]:
# Check which STITCHED extensions are present
stitched_exts = [hdu.name for hdu in l3 if 'STITCHED' in hdu.name]
print("Stitched spectrum extensions:")
for ext in stitched_exts:
print(f" {ext}")
Stitched spectrum extensions:
STITCHED_CORR_SCI_FLUX
STITCHED_CORR_SCI_WAVE
STITCHED_CORR_SCI_VAR
STITCHED_TELLCORR_SCI_WAVE
STITCHED_TELLCORR_SCI_FLUX
STITCHED_TELLCORR_SCI_VAR

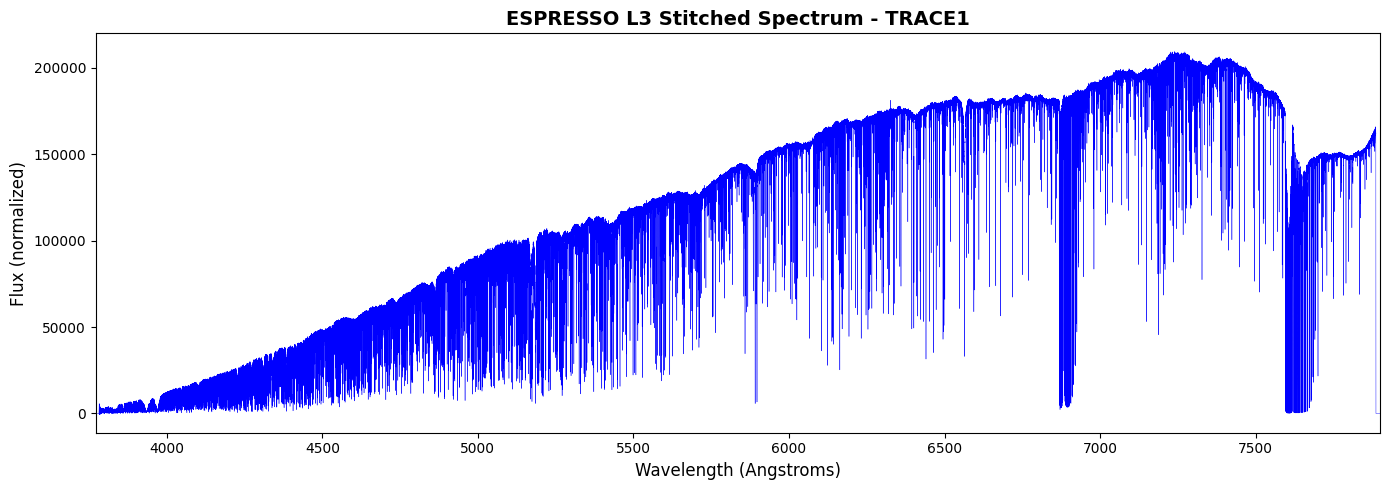

Plotting the Stitched Spectrum
[13]:
# Plot the stitched spectrum for one trace
# Check which trace extensions exist
trace_num = 1 # Try TRACE2 first
wave_ext = f'STITCHED_CORR_SCI_WAVE'
flux_ext = f'STITCHED_CORR_SCI_FLUX'
if wave_ext in [hdu.name for hdu in l3]:
wave_l3 = l3[wave_ext].data
flux_l3 = l3[flux_ext].data
fig, ax = plt.subplots(figsize=(14, 5))
ax.plot(wave_l3, flux_l3, 'b-', lw=0.3)
ax.set_xlabel('Wavelength (Angstroms)', fontsize=12)
ax.set_ylabel('Flux (normalized)', fontsize=12)
ax.set_title(f'ESPRESSO L3 Stitched Spectrum - TRACE{trace_num}', fontsize=14, fontweight='bold')
# Zoom inset
ax.set_xlim(wave_l3[np.isfinite(wave_l3)].min(), wave_l3[np.isfinite(wave_l3)].max())
plt.tight_layout()
plt.show()
print(f"\nWavelength range: {np.nanmin(wave_l3):.1f} - {np.nanmax(wave_l3):.1f} Angstroms")
print(f"Number of pixels: {len(wave_l3)}")
else:
print(f"Extension {wave_ext} not found. Available: {stitched_exts}")
Wavelength range: 3772.0 - 7900.0 Angstroms
Number of pixels: 443262
Zoomed View of Spectral Features
[14]:

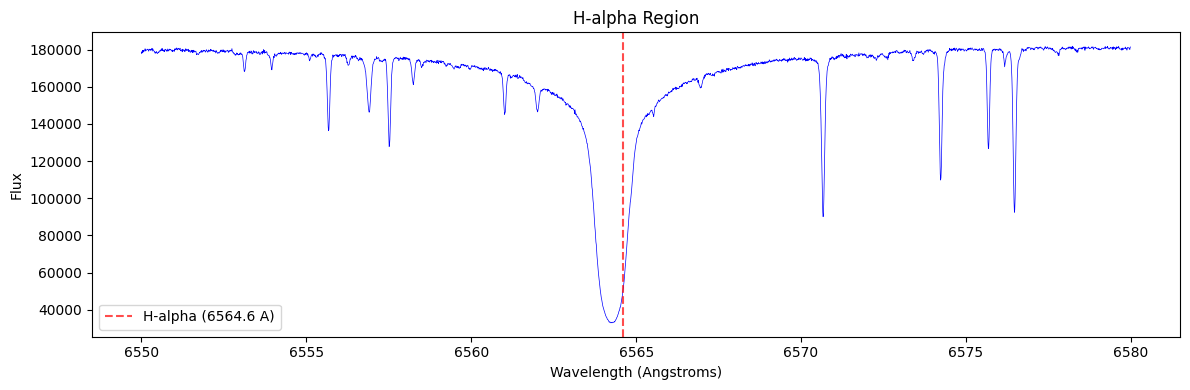

# Zoom in on H-alpha region
if wave_ext in [hdu.name for hdu in l3]:
fig, ax = plt.subplots(figsize=(12, 4))
# H-alpha region
mask = (wave_l3 > 6550) & (wave_l3 < 6580)
ax.plot(wave_l3[mask], flux_l3[mask], 'b-', lw=0.5)
ax.axvline(6564.6, color='red', ls='--', alpha=0.7, label='H-alpha (6564.6 A)')
ax.set_xlabel('Wavelength (Angstroms)')
ax.set_ylabel('Flux')
ax.set_title('H-alpha Region', fontsize=12)
ax.legend()
plt.tight_layout()
plt.show()
Level 4: Radial Velocity Measurements
Level 4 data contains radial velocity (RV) measurements derived from the spectra. These can include:
Per-order RVs
Combined RV with uncertainty
Activity indicators
Creating L4 from ESPRESSO CCF data
L4 is typically created from native pipeline outputs that contain RV measurements. For ESPRESSO, the native CCF file includes CCF-derived RVs.
[15]:
# Create L4 from native ESPRESSO CCF file (which contains RV measurements)
espr_l4 = RV4.from_fits(raw_file, instrument="ESPRESSO")
# Save to FITS file
l4_standard_file = "espr_L4_standard.fits"
espr_l4.to_fits(out_filedir=None, out_filename=l4_standard_file)
print(f"Created {l4_standard_file}")
SCIENCE FP HD 10700
File r.ESPRE.2017-12-03T02:09:40.348_CCF_SKYSUB_A.fits not found. Skipping...
Created espr_L4_standard.fits
/Users/emilio/Desktop/EPRV/Translators/RVData/rvdata/core/models/base.py:474: UserWarning: Filename 'espr_L4_standard.fits' does not follow the EPRV naming convention. Suggested filename: 'espresso_SL4_20171203T020940.fits'
warnings.warn(
Using L4 Data
Reading the L4 File
[16]:
# Open the L4 file
l4 = fits.open(l4_standard_file)
# Examine primary header for RV info
hdr4 = l4[0].header
print(f"Object: {hdr4['OBJECT']}")
print(f"Observation time (BJD): {hdr4.get('BJDTDB', 'N/A')}")
# List extensions
print("\nL4 Extensions:")
for hdu in l4:
print(f" {hdu.name}")
Object: HD 10700
Observation time (BJD): 2458090.59436763
L4 Extensions:
PRIMARY
INSTRUMENT_HEADER
RECEIPT
DRP_CONFIG
EXT_DESCRIPT
RV1
CCF1
DIAGNOSTICS1
RV_TEL_CORR
CCF_TEL_CORR
Examining the RV1 Extension
The RV1 extension contains per-order radial velocity measurements with standardized column names.
[17]:
# Examine the RV1 extension
rv1 = pd.DataFrame(l4['RV1'].data)
print("RV1 columns:")
print(rv1.columns.tolist())
print(f"\nNumber of orders: {len(rv1)}")
print("\nFirst 5 rows:")
print(rv1.head())
RV1 columns:
['BJD_TDB', 'RV', 'RV_ERR', 'BERV', 'WAVE_START', 'WAVE_END']
Number of orders: 1
First 5 rows:
BJD_TDB RV RV_ERR BERV WAVE_START WAVE_END
0 2.458091e+06 -15.082474 0.000205 -22.110426 NaN NaN
Summary
This tutorial demonstrated how to:
Create L2 from native ESPRESSO files using
RV2.from_fits()Use L2 data: access headers, examine extensions, plot spectra
Create L3 from native ESPRESSO files using
RV3.from_fits()Use L3 data: access stitched spectra, examine spectral features
Create L4 from native ESPRESSO files using
RV4.from_fits()Use L4 data: access RV measurements and per-order RVs
The standardized data format allows consistent access patterns across all EPRV instruments!
[18]:
# Clean up - close FITS files
l2.close()
l3.close()
l4.close()
